Product Details:
|
| Name: | Tube Ice Machine | Refrigerant: | R507/R404a |
|---|---|---|---|
| Cooling Way: | Water/Air Cooling | Tube Ice Length: | 30~55mm |
| Tube Ice Diameter: | 22mm,28mm And 35mm | Compressor Brand: | Bitzer /Franscold |
| Material: | Stainless Steel | Capacity: | 1-50 Ton |
| High Light: | Franscold Compressor Ice Tube Machine,High Performance Ice Tube Machine |
||

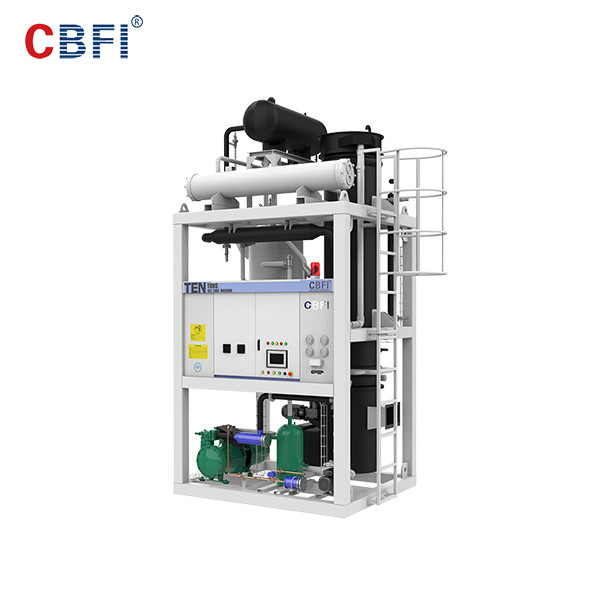

Bitzer or Franscold Compressor Ice Tube Machine for High-Performance Ice Production
The Bitzer and Franshuck compressors are two of the most effective solutions for high-performance ice-making machines. These compressors offer numerous advantages in terms of efficiency, durability, and cost-effectiveness.
First and foremost, these compressors are designed to deliver high efficiency and excellent performance. They are engineered with innovative features that enhance their energy performance and enable them to maintain consistent output even under extreme conditions. The Bitzer and Franshuck compressors are recognized for their high refrigeration capacity, efficient oil management, and optimal component arrangements. As a result, they are ideal for use in commercial and industrial ice machines where precision cooling is required.
Another major advantage of using Bitzer or Franshuck compressors is their durability. These compressors are manufactured with rigorous standards to ensure that they can withstand the demands of continuous operation and harsh environments. They feature robust construction materials, advanced corrosion resistance, and extensive component testing to ensure maximum reliability. This allows them to provide extended service life, lower maintenance costs, and reduced downtime.
Moreover, Bitzer and Franshuck compressors are known for their versatility. They can be used in various application areas, including ice-making machines, refrigeration systems, air conditioning units, and other low-temperature applications. These compressors come with a wide range of capacity offerings, from small-scale units to high-capacity models, ensuring that they can be adapted to different size and scope requirements.
In addition, Bitzer and Franshuck compressors offer superior efficiency and energy savings compared to other types of compressors. They are equipped with advanced control systems that optimize performance by automatically adjusting the compressor speed based on the cooling load and ambient temperature. This results in significant energy savings and operational cost reduction.
Finally, the Bitzer and Franshuck compressors are available at a competitive price point. Despite their advanced features and high performance, these compressors are designed to be cost-effective and affordable. They offer excellent value for money compared to other premium compressor brands. This makes them a practical choice for businesses looking to upgrade their ice-making facilities without incurring high expenses.
Product Parameters
|
Model
|
Daily output
(T/ 24 h)
|
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
|
TV10
|
1
|
4.1
|
0.25
|
1.1
|
1100*900*1780
|
900
|
|
|
TV20
|
2
|
7.44
|
0.25
|
1.5
|
1250*1000*1950
|
1200
|
|
|
TV30
|
3
|
10
|
0.55
|
1.5
|
1300*1100*2200
|
1500
|
|
|
TV50
|
5
|
19.9
|
0.55
|
2.5
|
1600*1400*2250
|
1800
|
|
|
Model
|
Daily output
(T/24 h) |
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
|
Main Host
|
Brine Tank
|
||||||
|
TV 100
|
10
|
27.9
|
1.5
|
4
|
1900*1600*1850
|
1200*1200*3390
|
3500
|
|
TV 100+
|
10
|
39.8
|
1.5
|
4
|
2400*1700*2000
|
1200*1200*3390
|
3700
|
|
TV 150
|
15
|
46.4
|
1.5
|
5
|
2700*2000*2200
|
1500*1200*4250
|
4250
|
|
TV 200
|
20
|
55.7
|
2.2
|
7.5
|
2800*2200*2500
|
1500*1200*4700
|
6500
|
|
TV 300
|
30
|
83.6
|
2.2
|
7.5
|
3100*2200*2500
|
1800*1500*5700
|
7200
|
|
TV 400
|
40
|
111.4
|
2.2
|
11
|
3900*2250*2500
|
2000*1500*6800
|
8300
|
|
TV 500
|
50
|
139.3
|
3.75
|
15
|
4500*2250*2500
|
2200*1800*7200
|
9500
|
|
1. Compressor brand: Bitzer /Franscold ; Refrigerant: R 22/ R 404 A; Cooling Method: water cooling / air cooling.
2. Power supply:voltage 380V/3P/50Hz(for non-standard voltage, unit configuration needs to be calculated separately ).
3. Operating conditions: T (water supply):20℃ , T (ambient): 32℃, T(condensing):40℃, T (evaporating):-12℃. 4. (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) 5. (The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there any technical change. ) |
|||||||
